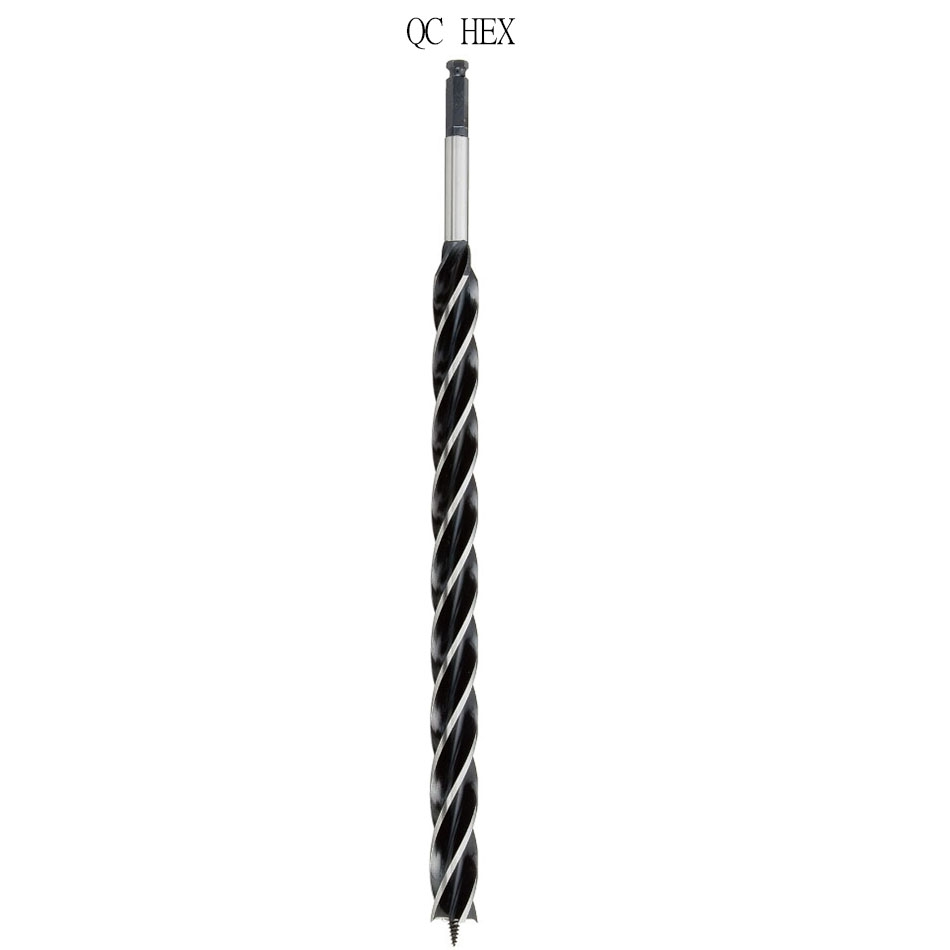

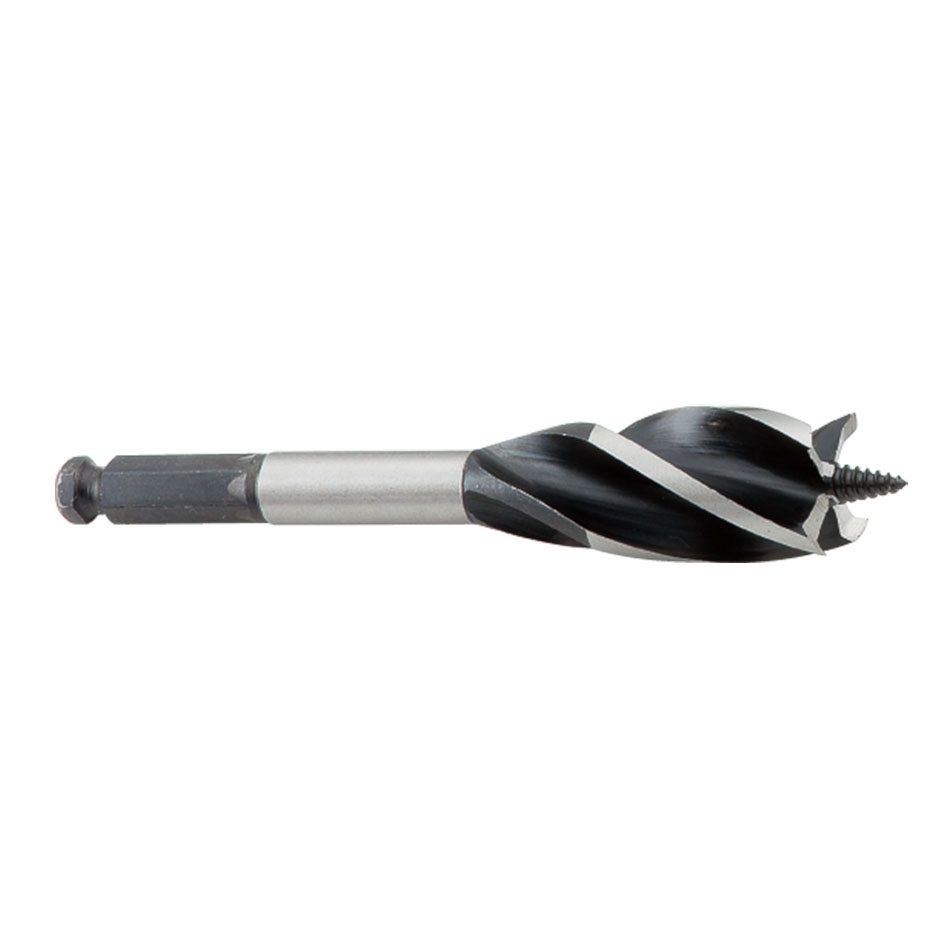

HL-795 / HL-799 / HL-906 — 4 & 5 Spur / 4 & 5 Flute Auger Bit Series

HL-795 / HL-799 / HL-906 — 4 & 5 Spur / 4 & 5 Flute Auger Bit Series

HL-795 & 799 & 906

Key Features

  • Multi-flute configuration promotes faster chip ejection for smoother drilling.

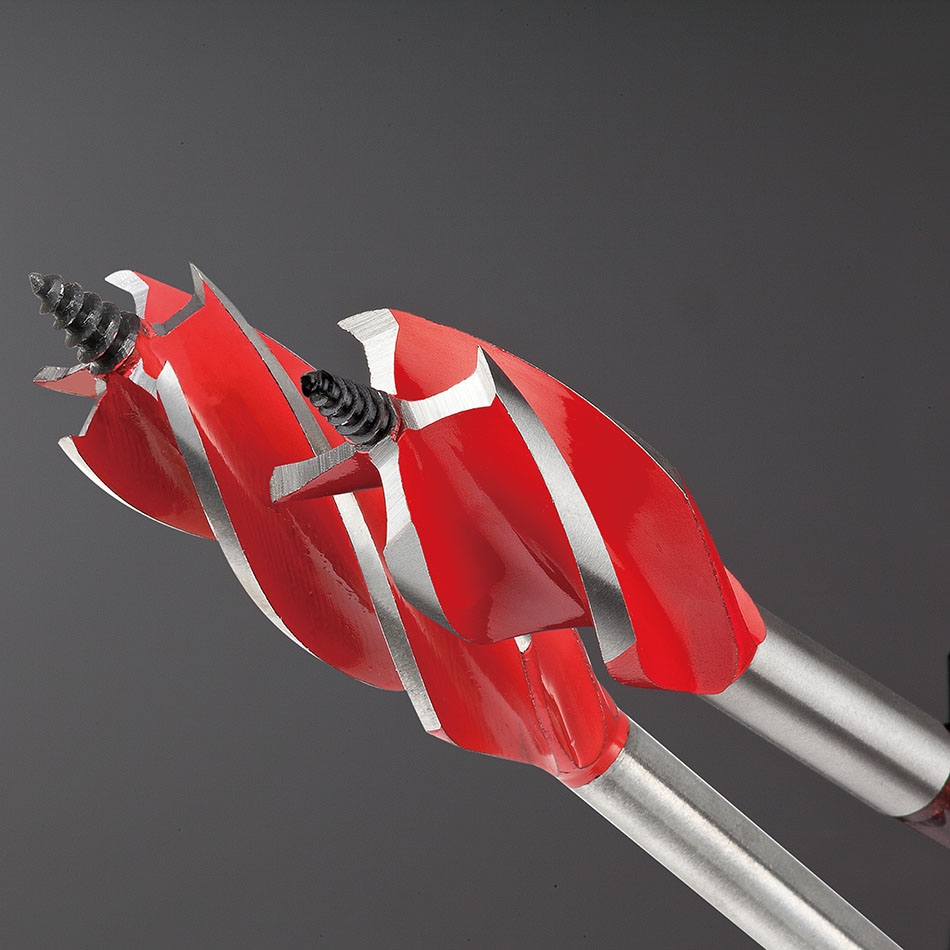

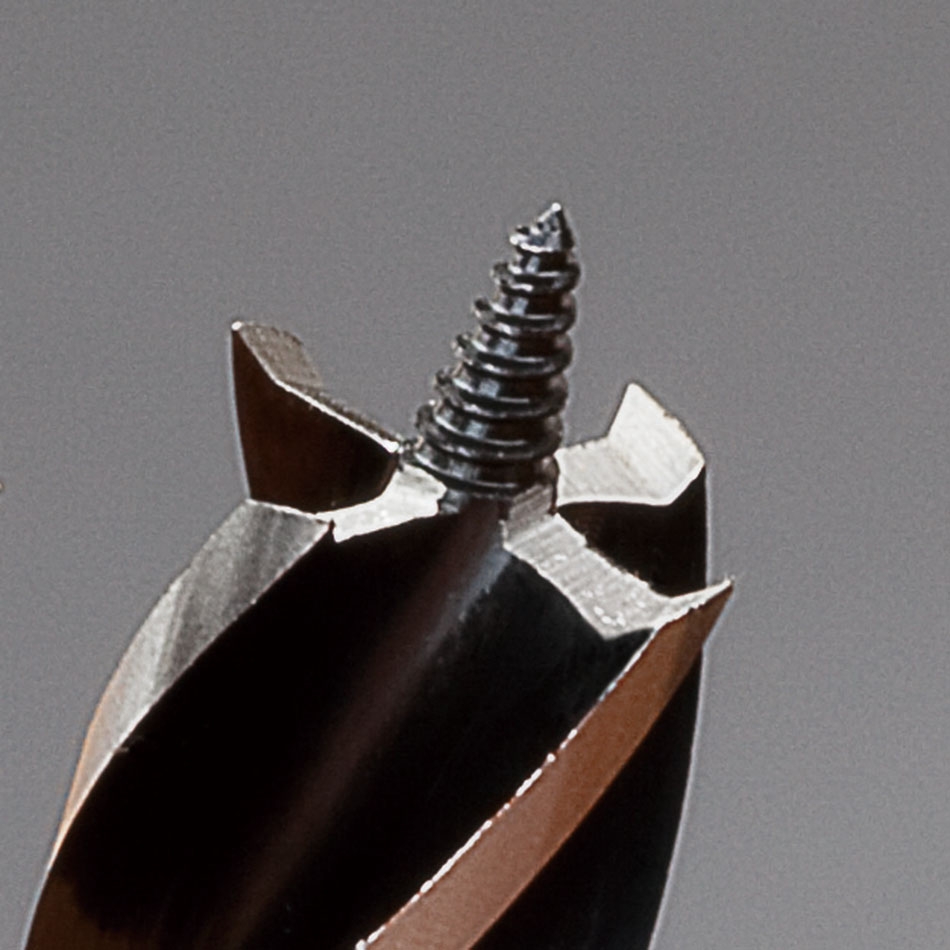

  • Multi-spur design creates exceptionally clean entry and exit holes.
  • Multiple cutting edges provide stable, fast drilling and a professional finish.
  • Available in both 4-spur / 4-flute and 5-spur / 5-flute configurations.

Applications
Furniture production, cabinetry, woodworking installations, interior construction.


HL-795 165mm(6.5”) OAL
HL-799 120mm(4.75”) OAL
HL-906 165mm(6.5”) OAL
Dlameter
Dlameter
QC Hex Shank Size
10mm
3/8”
6.35mm(1/4”)
11mm
7/16”
6.35mm(1/4”)
12mm

6.35mm(1/4”)
13mm
1/2”
6.35mm(1/4”)
14mm

6.35mm(1/4”)
15mm

6.35mm(1/4”)
16mm
5/8”
6.35mm(1/4”)
18mm

6.35mm(1/4”)
19mm
3/4”
6.35mm(1/4”)
20mm

6.35mm(1/4”)
21mm
13/16”
6.35mm(1/4”)
22mm
7/8”
6.35mm(1/4”)
24mm
15/16”
6.35mm(1/4”)
25mm
1”
6.35mm(1/4”)
26mm

6.35mm(1/4”)
28mm
1-1/8”
11.1mm(7/16”)
32mm
1-1/4”
11.1mm(7/16”)
35mm
1-3/8”
11.1mm(7/16”)
38mm
1-1/2”
11.1mm(7/16”)
HL-795 457mm(18”) OAL


Dlameter
Dlameter
QC Hex Shank Size
16mm
5/8”
11.1mm(7/16”)
19mm
3/4”
11.1mm(7/16”)
20mm

11.1mm(7/16”)
22mm
7/8”
11.1mm(7/16”)
25mm
1”
11.1mm(7/16”)
28mm
1-1/8”
11.1mm(7/16”)
32mm
1-1/4”
11.1mm(7/16”)
35mm
1-3/8”
11.1mm(7/16”)
